» Installation Guide of Koason Android Screen Display Upgrade Apple CarPlay For BMW X1 F48 E84

The installation guide is suitable for BMW X1 F48 E84.

There are four types available for the car, Please check it out clearly and choose it in our shop menu.

Android GPS Multimedia Screen Special for BMW X1 E84 (2009-2015) CIC or without original screen

Android GPS Multimedia Screen Special for BMW X1 F48 (2016-2017) NBT

Android GPS Multimedia Screen Special for BMW X1 F48 (2018-2020) EVO

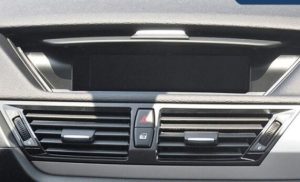

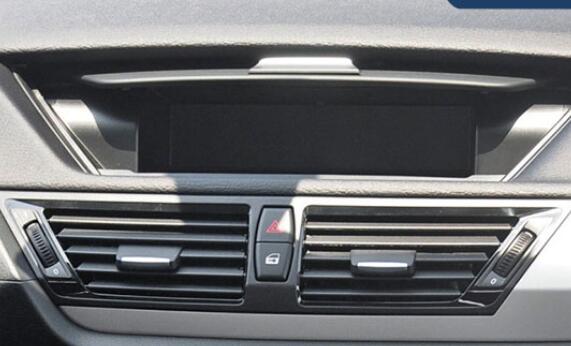

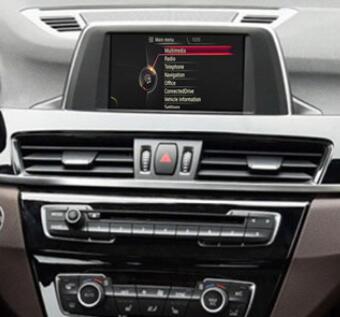

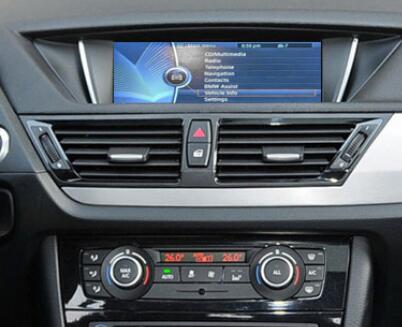

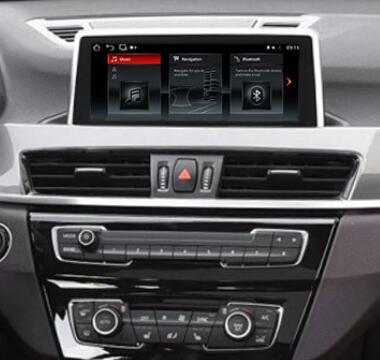

No Screen                                                                       CIC                                                                          NBT                                                                 EVO










Installation Steps

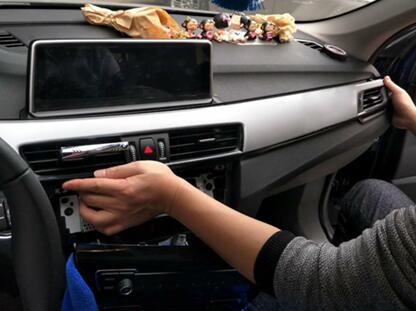

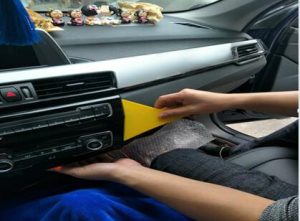

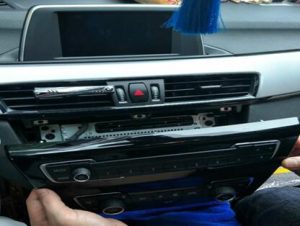

1.Pry up original CD panel.                                  2.Take out CD panel and unplug the wiring

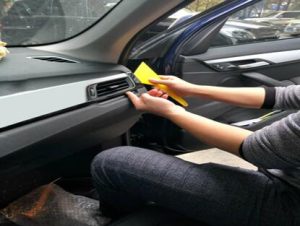

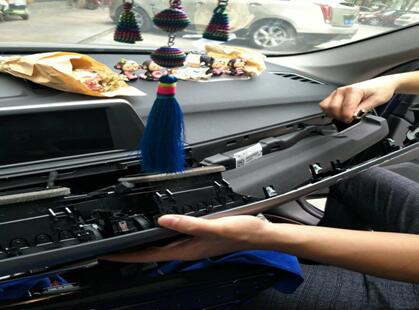

3.Pry up original vent panel.                             4.Remove AC panel and unplug wire.

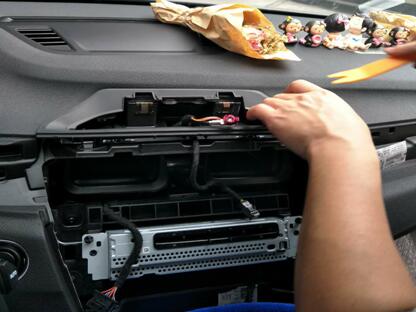

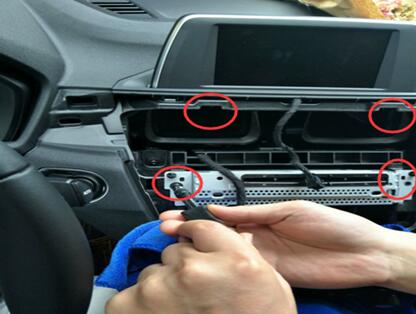

    5.Unscrews the fixing screws.                         6.Pry up the fixing holder,take out original CD.

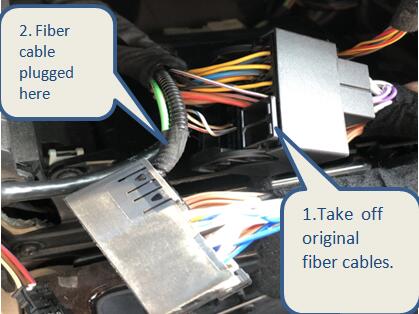

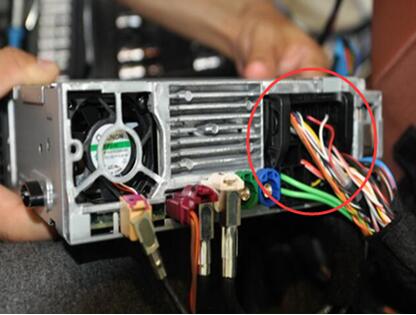

                                                                              7.Unplug the orignial CD power cable.                      8.Connect power cables together,plug original

                                                                                                                                                                power cable into the female socket of android power cable.

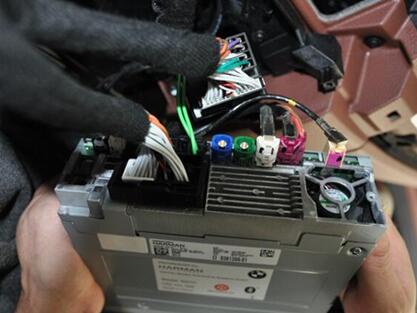

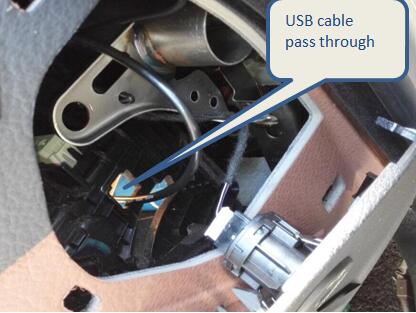

                                                                       9.Plug power cable into original CD.                       10.Put USB cable into container,bring cable passing through right SRS cover.

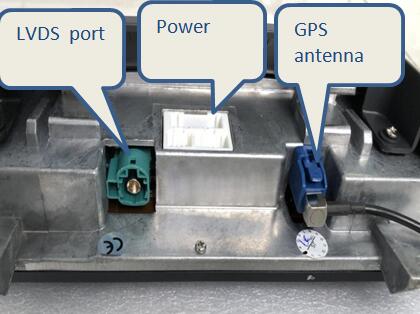

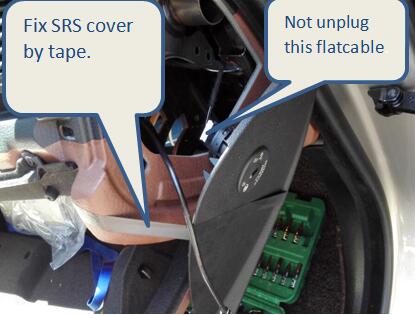

                                                                     11.USB cable into container，and put SRS cover back.             12.Connect original LVDS cable to

                                                                                                                                                                         unit LVDS port, plug power cables of android unit.



                                                               13.Power on car,check if android unit has sound or not. *         14.Put back CD panel、AC vent trim and android unit,screw up.

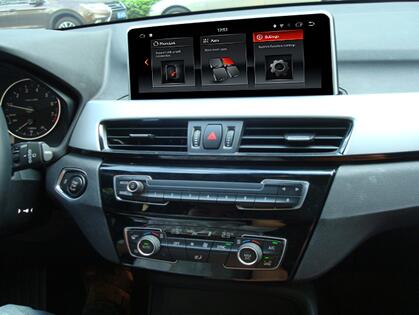

                                                                                   15.Finish installation.















NOTE:

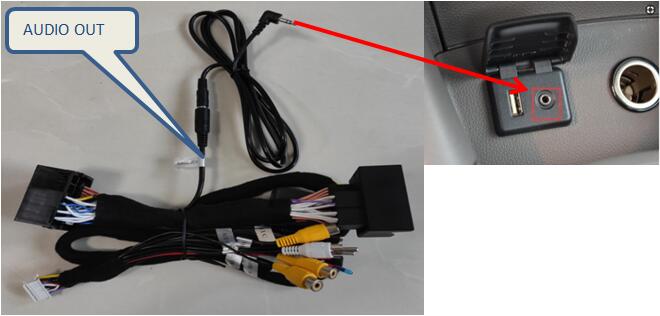

13. If it has sound, no need to check next step, if no sound, please connect "Audio out"cable into AUX input,check sound again and power off unit if has sound.
