» Installation Guide of Koason Android Screen Display Upgrade Apple CarPlay For Benz C W205 GLC X253 C253 V Class
Koason Android Screen Display Special for Mercedes Benz C GLC V class 2014-2018 (NTG5.0):
C Class W205 (2014-2018) C180 C200 C220 C250 C300 C350 C320 C63
GLC-Class X253 C253 (2015-2019) (GLC 63 43 300 350 200 250)
V class 2016-2017
10.25inch display or 12.3inch screen is optional for both LHD (left hand driving) and RHD(right hand driving) cars.

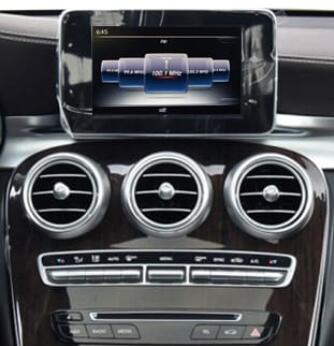

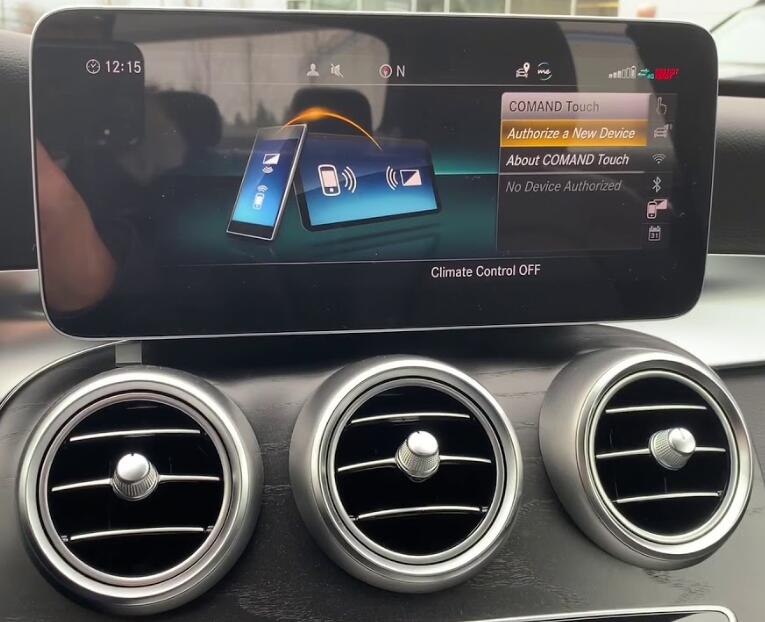

There are three systems (NTG5.0 NTG 5.5 NTG 6.0) you can select.
Please check the system clearly for your car and select it in our shop menu.
The installation is similar to our other screen, that is plug and play, no need to cut the wires, no coding, or other operation.
Let's get started!

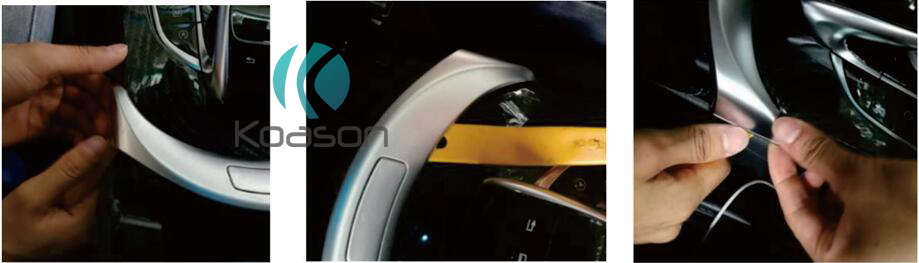

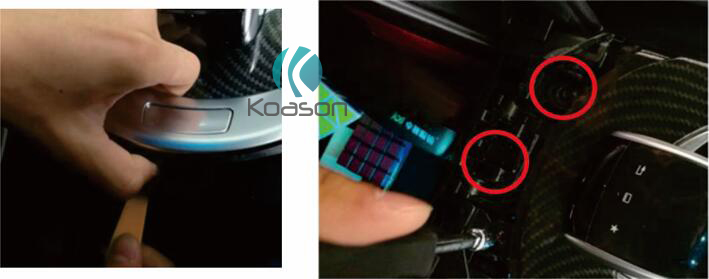

1. Use crowbar to prize up the arm box silver trim.
2.Unscrew the two screws on Armrest box.

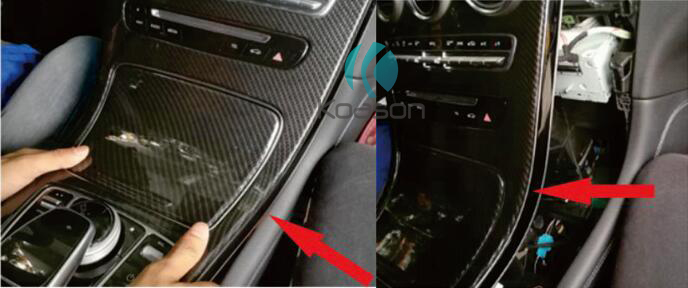

3.Pull up armrest panel slowly, pls be carefull

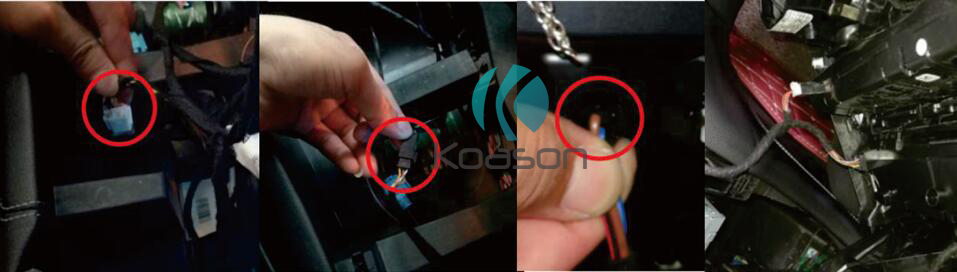

4.Unplug car plugs

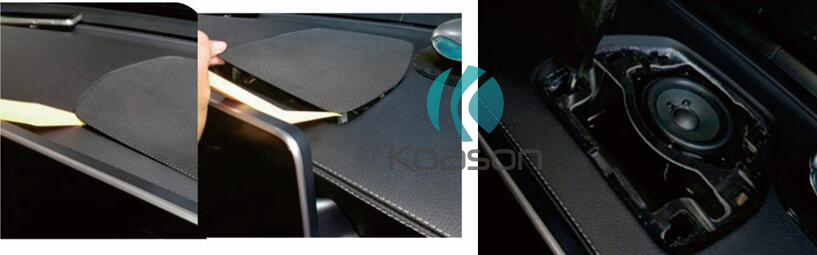

5.Prize up central speaker net cover 6.Unscrew the screws on speaker

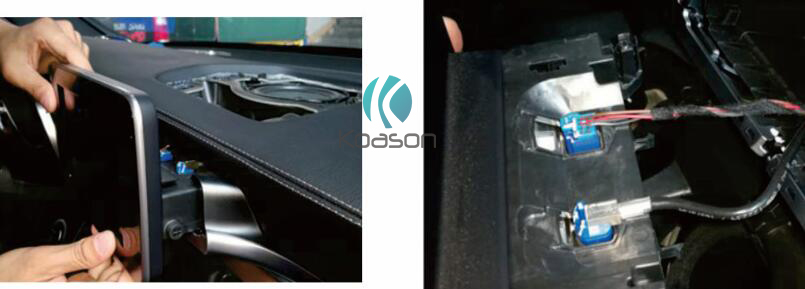

7.Pull out car monitor slowly 8.Unplug cables behind monitor

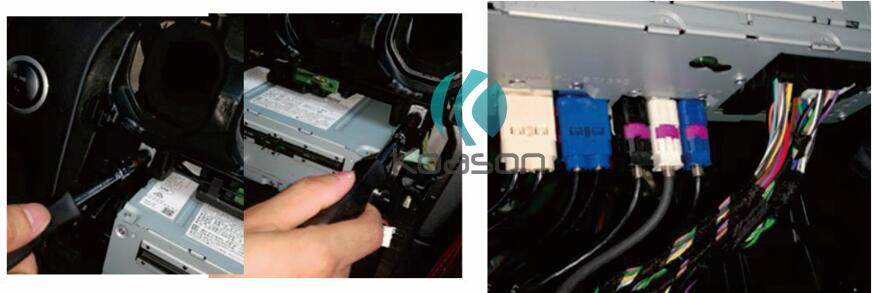

9.Unscrew the screws on CD 10. Car cables behind CD
11.Android cables put in car 12.Android GPS antenna passes through the car

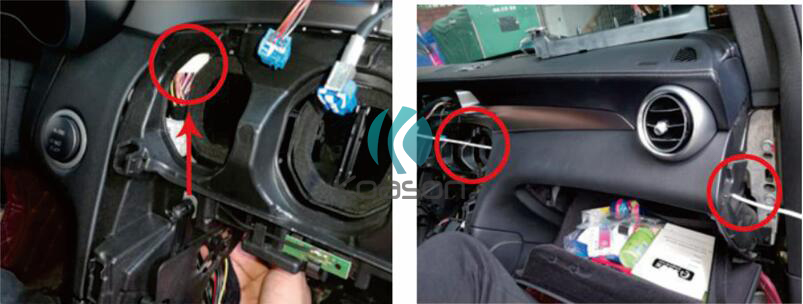

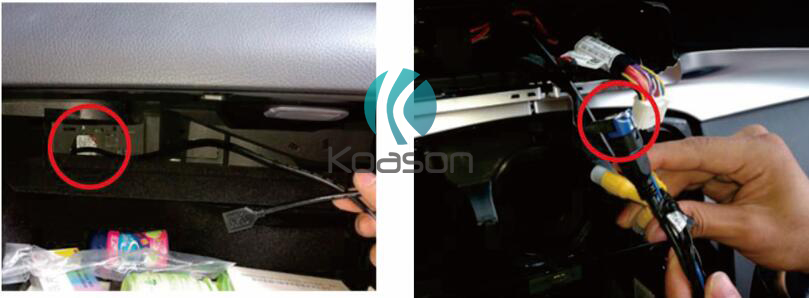

13.Android USB passes to armrest box 14. Car LVDS plug to android LVDS

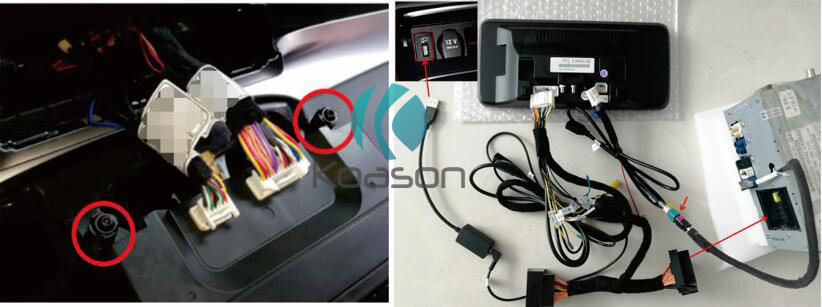

15.Use original two screws fix on android monitor and plug cables 16.Plug USB audio box to power cable and plugin car usb

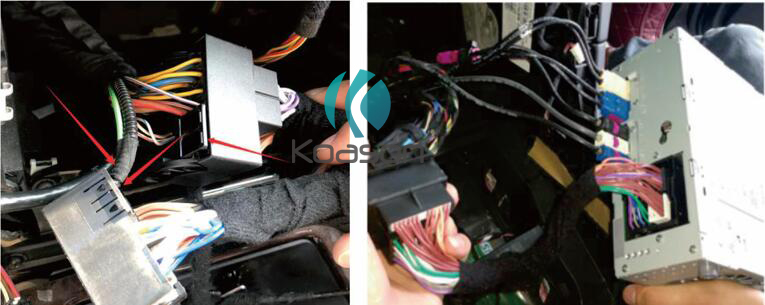

17.Connect Android plug to car CD, switch fiber cable from original 18. After wires are connected, power up car and check
socket into android socket, original plug to android other end android and original screen if it is showing normal

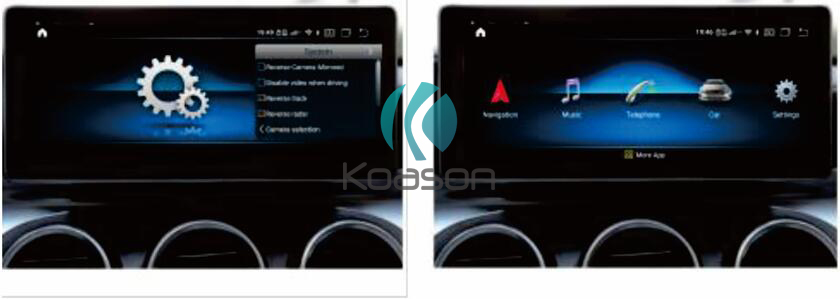

19.Plug all cables back, install panel and cover back. 20.Installation finish.
